8P8C Female Ethernet RJ45 Jack Connector USB 3.0 With Dual USB Plug

Product Categories
DONGGUAN JINZE ELECTRONICS CO.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8P8C Female Ethernet RJ45 Jack Connector USB 3.0 With Dual USB Plug

Brand Name : Jinze

Model Number : RJ17A-PBA10-TRA

Certification : ISO9001/ROHS/CE/FCC

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Tray Packaging

Current Rating : 1.5 Amps

Voltage Rating : 125 VAC

Insulation Resistance : 500 MΩmin

Contact Resistance : 30 MΩmin

Withstanding Voltage : AC 1000V RMS 50HZ or 60Hz 1min

Durability : 1500 Mating Cycles Min

Retention Strength : 7.7 KG F Min Between Jack and Plug

OEM/ODM : YES

Contact Now

Speciafications

RJ45 Materials
Housing: Thermo Plastics, PBT, BK, UL94V-0
Insert Base: Thermo Plastics, PBT, BK, UL94V-0
Contact: Copper Alloy
Shell: Sus403, T=0.25mm
PCB Pin: Tin Plating 80U" on solder tail area
USB Materials:
Cover: PA66&PTB+30%G.F, UL94V-0
Housing: PA66&PTB+30%G.F, UL94V-0
Shell: SUS T=0.25
Contacts: Brass (C2680) T=0.20
Color: Blue
Contacts Plating: Au 30u" +80u" min Matte Tin+50u" Min Nickel
Insert Force: 3.5kg MAX.
Exraction: Force: 1.0-3.5KG
Durability: 1500 cycles
Insulation Resistance: 100M Min
Operating Temperature 0℃-70℃
Input-Output Isolation 2250 VDC For 60 Seconds

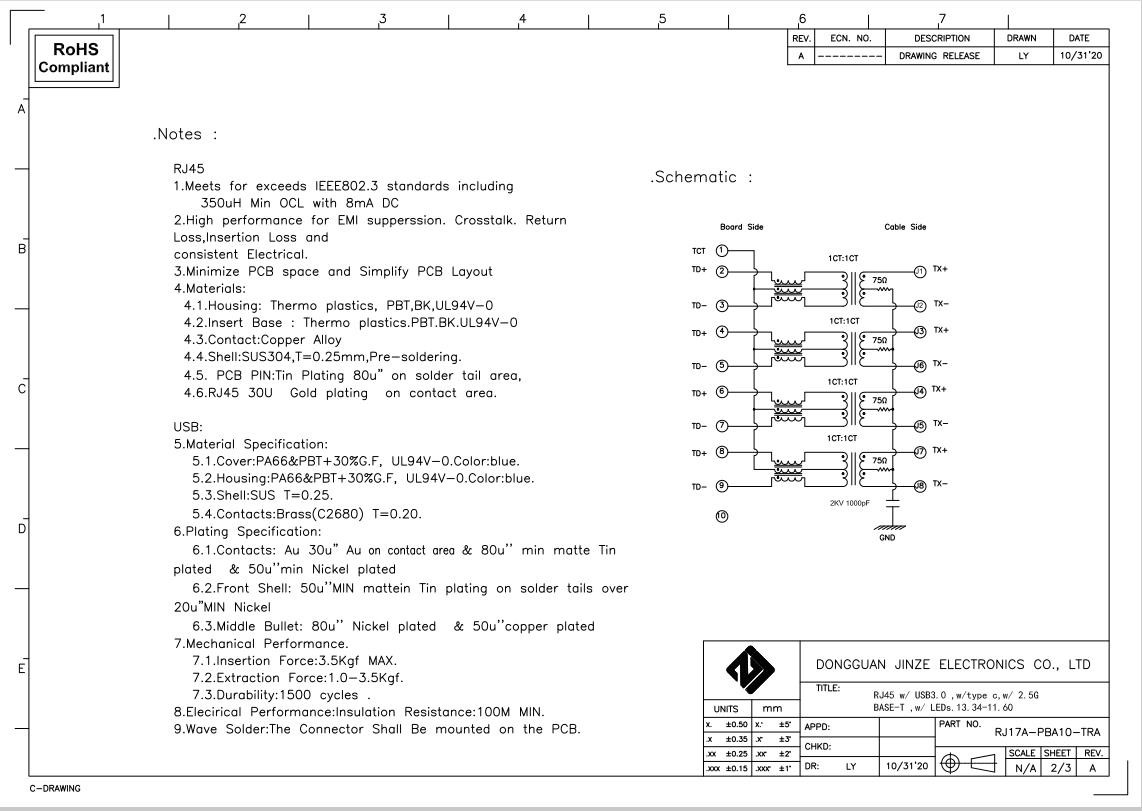

Drawings

8P8C Female Ethernet RJ45 Jack Connector USB 3.0 With Dual USB Plug8P8C Female Ethernet RJ45 Jack Connector USB 3.0 With Dual USB Plug8P8C Female Ethernet RJ45 Jack Connector USB 3.0 With Dual USB Plug

2D Drawings:

RJ17A-PBA10-TRA.pdf, if you need the Drawing, pls download it

Our advantage
1. Professional connector manufacturer, a variety of styles to choose from, providing the best EXW price! 100% QC shipping inspection, quality assurance!

2. We can provide free samples for you to test!

3. We support OEM/ODM. If the product is not what you want, please contact us directly, we will make the best solution for you for free!

4. Large-scale production workshop, fast delivery, immediate delivery, guaranteed delivery.

5. One-to-one after-sales service, please feel free to contact us if you have any questions.
