C2680 SUS Displayport DP Socket Connector Socket Connection 90 Degree SMT Solder Plating PI Tape

Name: C2680 SUS Displayport DP Socket Connector Socket Connection 90 Degree SMT Solder Plating PI Tape
Brand: Jinze
Price: 1 USD

Wholesale C2680 SUS Displayport DP Socket Connector Socket Connection 90 Degree SMT Solder Plating PI Tape from china suppliers

Brand Name : Jinze

Model Number : DP01G-LBA12-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP UL 94 V-0

Color : Black

Gender : Receptacle (Female)

Application : PCBA

Number of Contacts : 20 Contact

Number of Ports : 1 Port

Current Rating : 0.5A

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Packaging : Tape&Reel

Contact Now

C2680 SUS Displayport DP Socket Connector Socket Connection 90 Degree SMT Solder Plating PI Tape

Specifications

Hosuing	LCP, UL94V-0
Color	Black
Contact	C2680, T=0.20mm
Shield	C2680, T=0.40mm
Cover	LCP, UL 94V-0
Contact Finish	Gold (1u") Plating in Contact Area
	80u" Min Tin Plated in Solder Area
	50u" Min. Nickel Underplated Overall
Shield	50u" Min. Nickel Underplated Overall
Current Rating	0.5A
Voltage Rating	40V
Contact Resistance	40 mΩ Max
Insulation Resistance	Unmated: 100mΩ Min at 500 VDC
Insulation Resistance	Mated: 10mΩ Min at 150 VDC
Dielectric Withstanding Voltage	500 V AC/1 Minute
Durabilty	10000 Cycles
Operation Temperature	-20°C~+85°C
Storage Temperature	-20°C~+65°C

Images

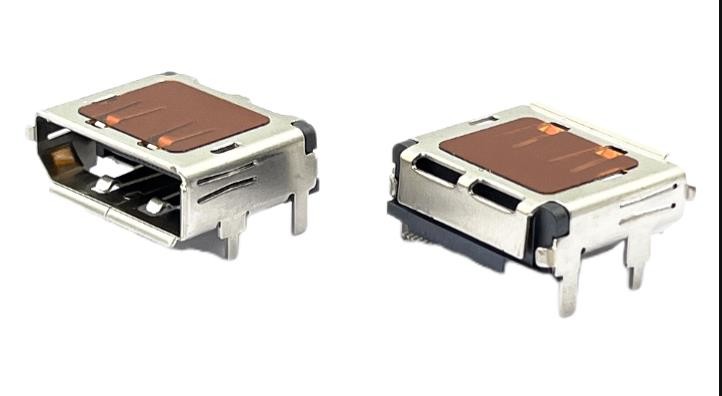

C2680 SUS Displayport DP Socket Connector Socket Connection 90 Degree SMT Solder Plating PI Tape

DP01G-LBA12-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
